Rigid Dump Trucks

HD1500-8

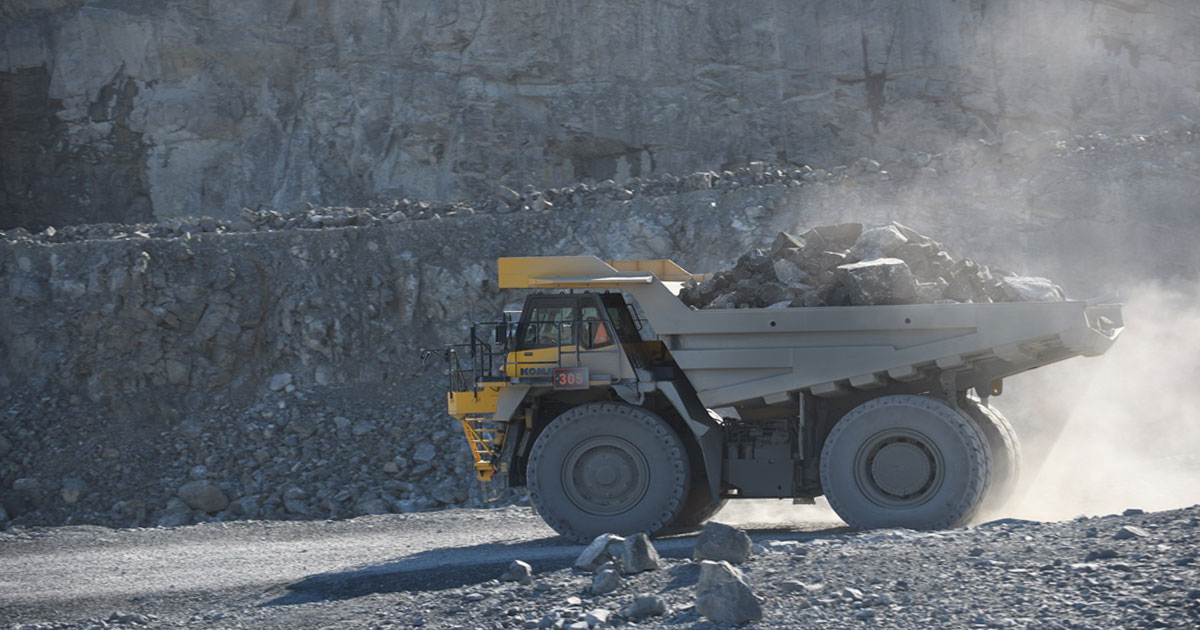

Komatsu dump trucks can transport heavy loads quickly, easily and cost effectively. The Komatsu HD1500-8 rigid dump trucks are built around a powerful Komatsu engine and are exceptionally strong machines. They guarantee complete driving safety, even at high speeds.

Get the brochure

HD1500-8

Auto Retard Speed Control (ARSC)

Auto Retard Speed Control (ARSC) allows to easily set a constant downhill travel speed and lets the operator concentrate on steering. Speed can be adjusted appropriately to the slope grade at an increment of 1 km/h by clicking the control lever (± 5 km/h max.)

HD1500-8

Small turning radius

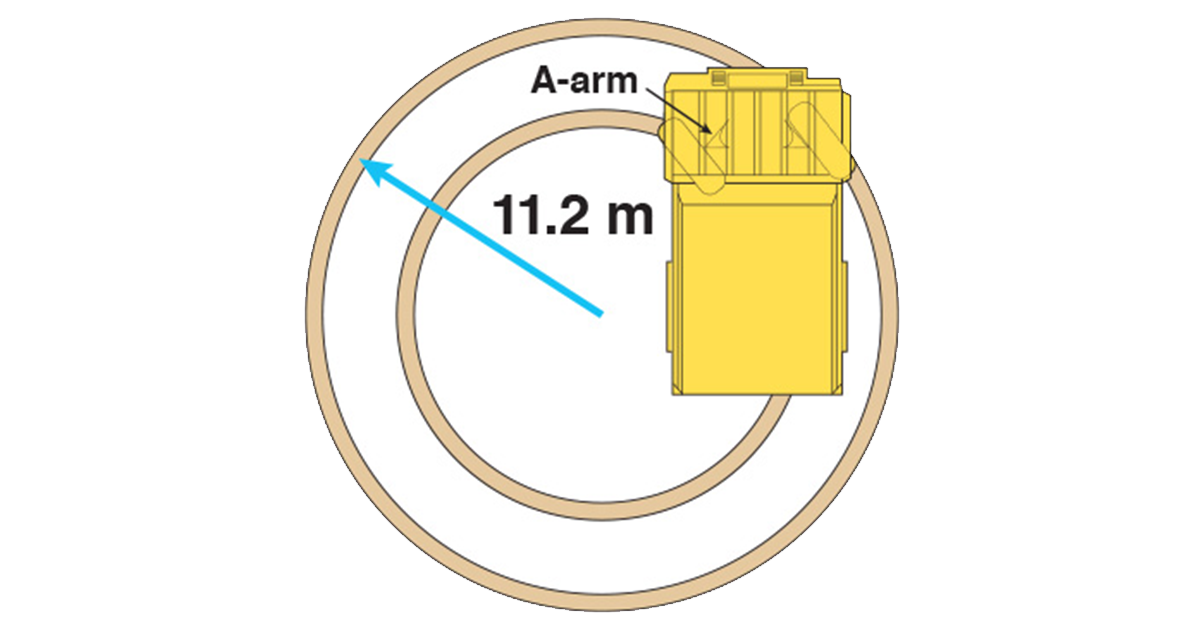

The MacPherson strut type front suspension has a special A-frame between each wheel and the main frame. The wider space created between the front wheels and the main frame increases the turning angle of the wheels. The larger this turning angle, the smaller the turning radius of the truck.

HD1500-8

Payload meter (PLM)

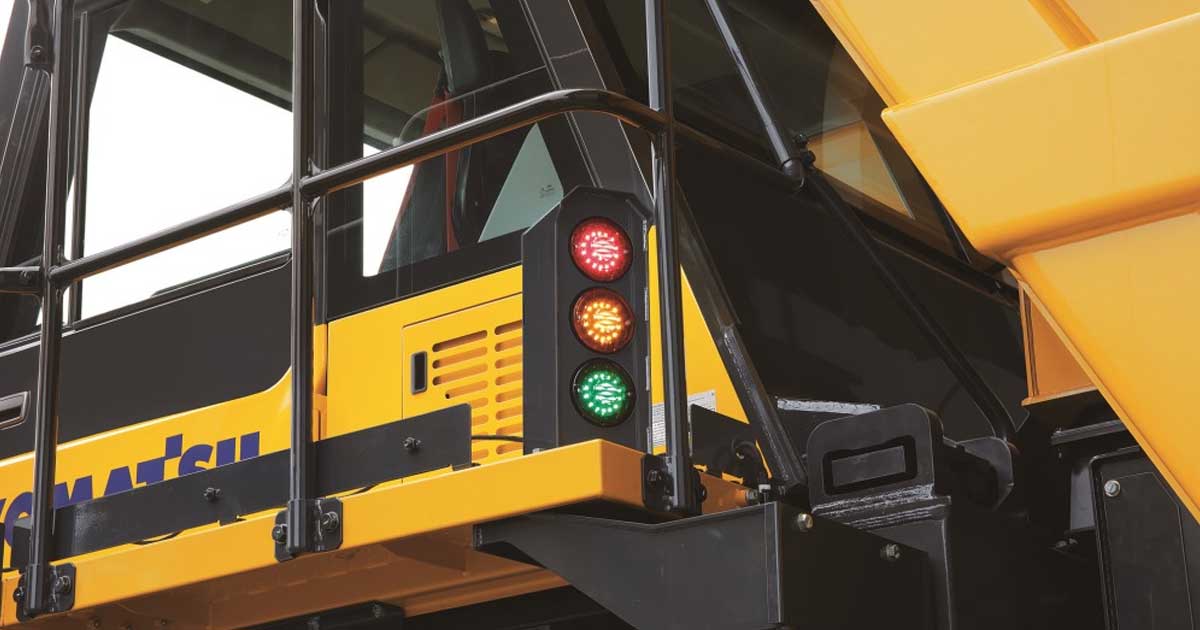

The Payload meter (PLM) manages the payload of each hauling cycle and analyzes the truck’s production volume and working conditions for a specific period. Loaded weight is displayed in real time, both on the cab’s monitor and by external display lamps.

Komatsu Rigid Dump Trucks

First-class operator comfort

The wide Komatsu SpaceCab™ with user-friendly controls provides a comfortable and safe work environment. A fully adjustable airsuspended seat dampens vibrations and reduces the fatigue of long shifts. Large front and electric side windows give a superior visibility and increased confidence.

Hydro-pneumatic suspension
Low-noise design
Heated & ventilated air-suspended seat

HD1500-8

Large LCD colour monitor

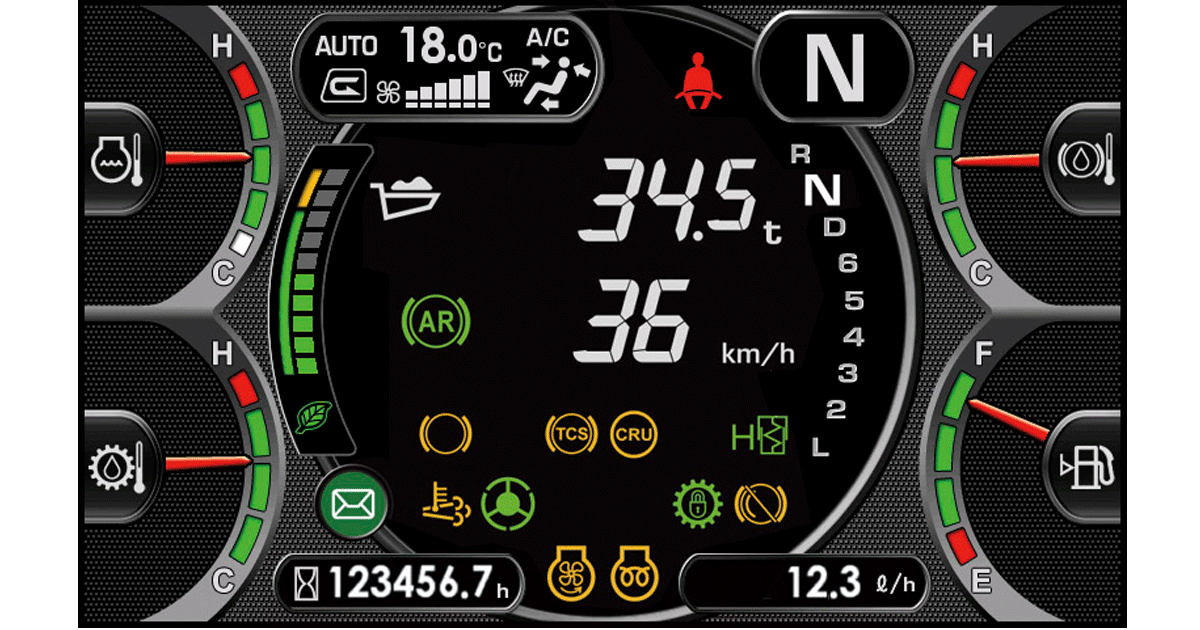

Large LCD colour monitor: A large user-friendly colour monitor enables safe, accurate and smooth work. Multilingual and with all essential information available at a glance, it features simple and easy-to-operate switches and multifunction keys that provide fingertip access to a wide range of functions and operating information

HD1500-8

Safety first

Safe cab access thanks to the low angle of the front stairways with handrails, slip-resistant.

Speed limiter: Maximum travel speed is limited independently for both empty and loaded conditions

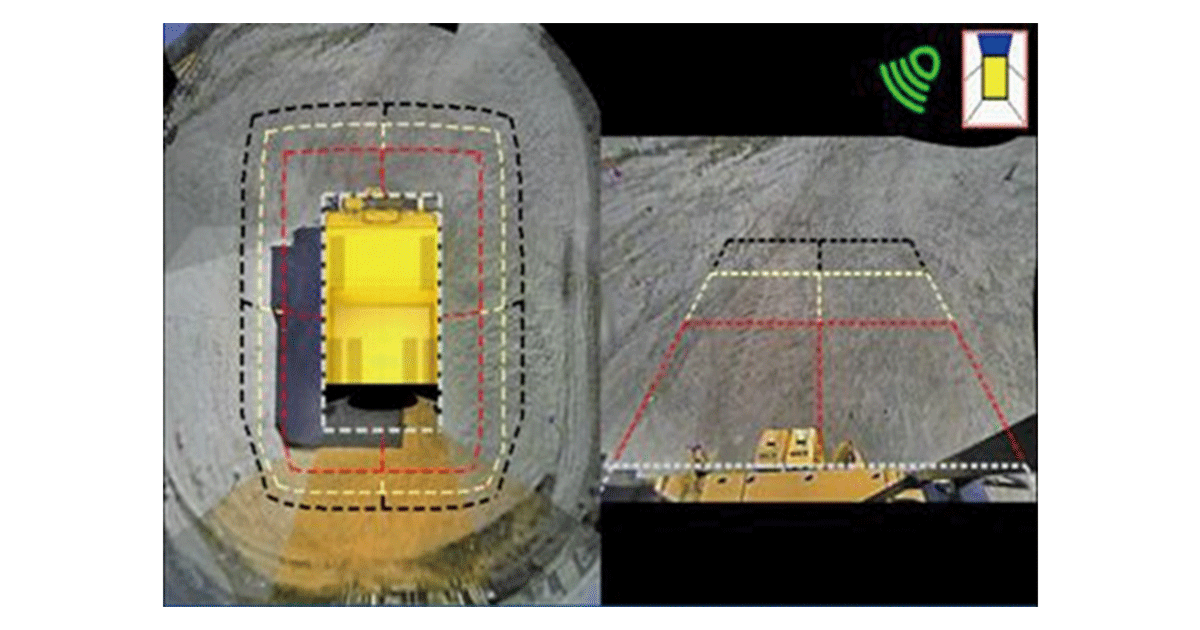

KomVision is standard: with 6 networked high definition cameras, it creates a real-time bird’s-eye view on the cab monitor, and eliminates the blind spots on the rear and sides of the machine.

HD1500-8

Easy maintenance

Battery disconnect switch For convenience in maintenance/ service, a battery disconnect switch is located on the left side of the vehicle, and is accessible from the ground level.

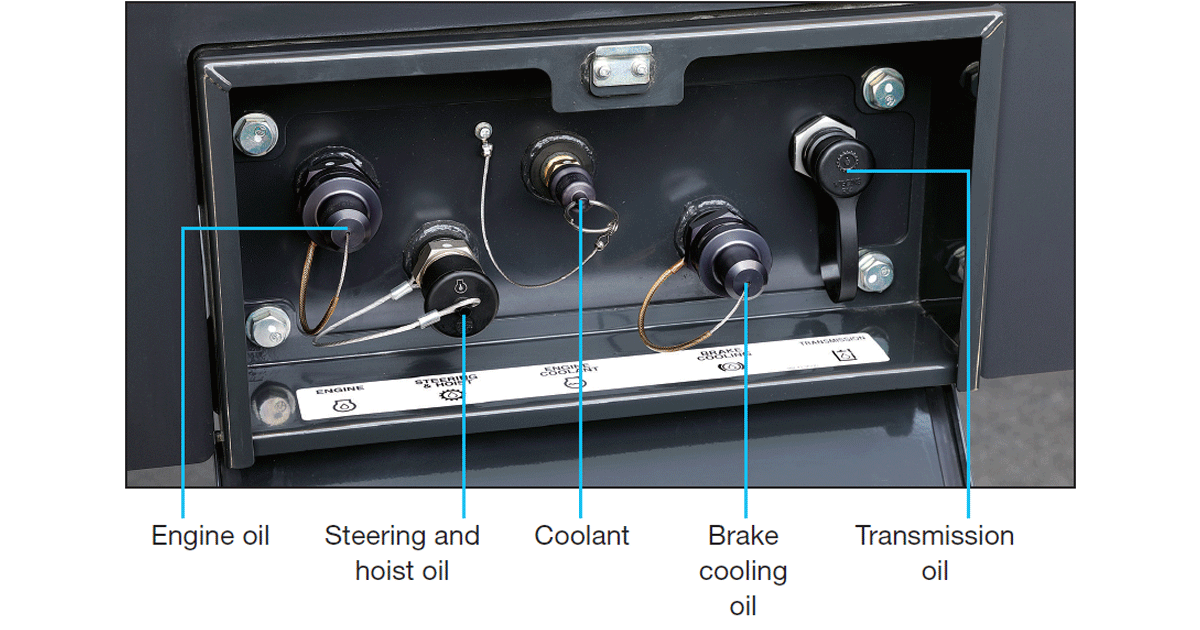

Service center A convenient service center is located on the bottom part of the steering/hoist tank. It facilitates engine oil, coolant, transmission oil, steering & hoist oil, and brake cooling oil refilling at the same location.

Centralized arrangement of filters The filters are centralized for easy service.

Auto greasing system This system automatically supplies grease to each greasing point, at preset times. It is no longer necessary to periodically lubricate with a manual pump. Oil reservoir is accessible to refill from the ground level.

Komtrax Plus continuously monitors your machine’s settings, condition, fuel usage and performance along with operating practices. This comprehensive data set is designed to help prolong your quarry and mining machine’s life, improve its efficiency and optimise production levels and costs.

HD1500-8
